For many brick-built vehicle builders, a LEGO-style car is no longer just a display model. They want real speed, stronger acceleration, sharper control, and a driving experience that feels closer to a true RC performance car. However, traditional LEGO Power Functions and many compact upgrade systems often reach their limits when builders try to push heavier models beyond normal play speed.

In a high-performance LEGO-style sports car or supercar build, the ZENE Bricks RC Center can control a powerful brushless motor system and help the model Controlling Drift and reach speeds of 30km/h+, far beyond typical LEGO motor setups and stronger than many common brick vehicle power solutions. With high current output, responsive throttle control, servo support, gyro assistance, and clean system integration, builders can transform their brick-built vehicle from a slow mechanical model into a fast, stable, and exciting RC machine.

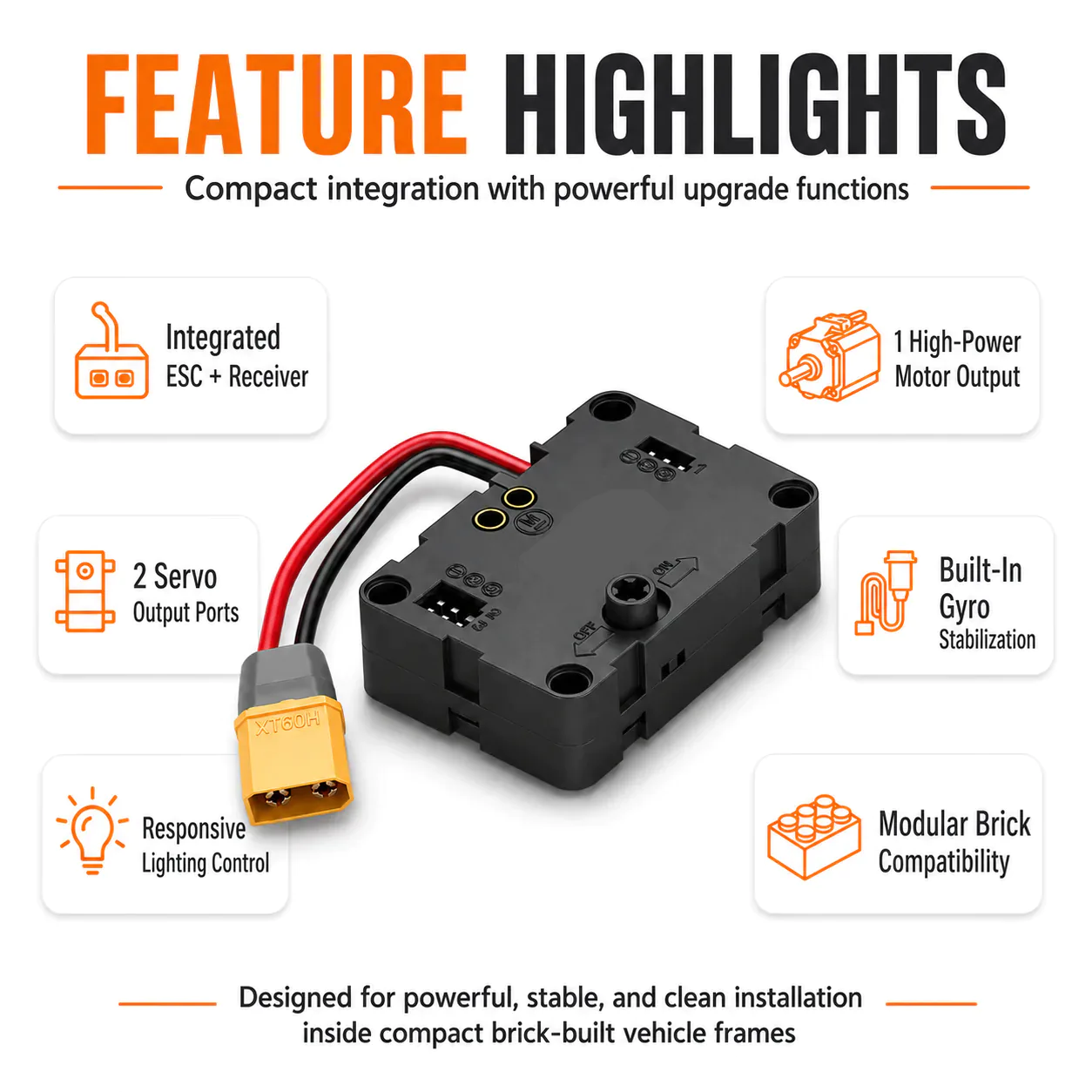

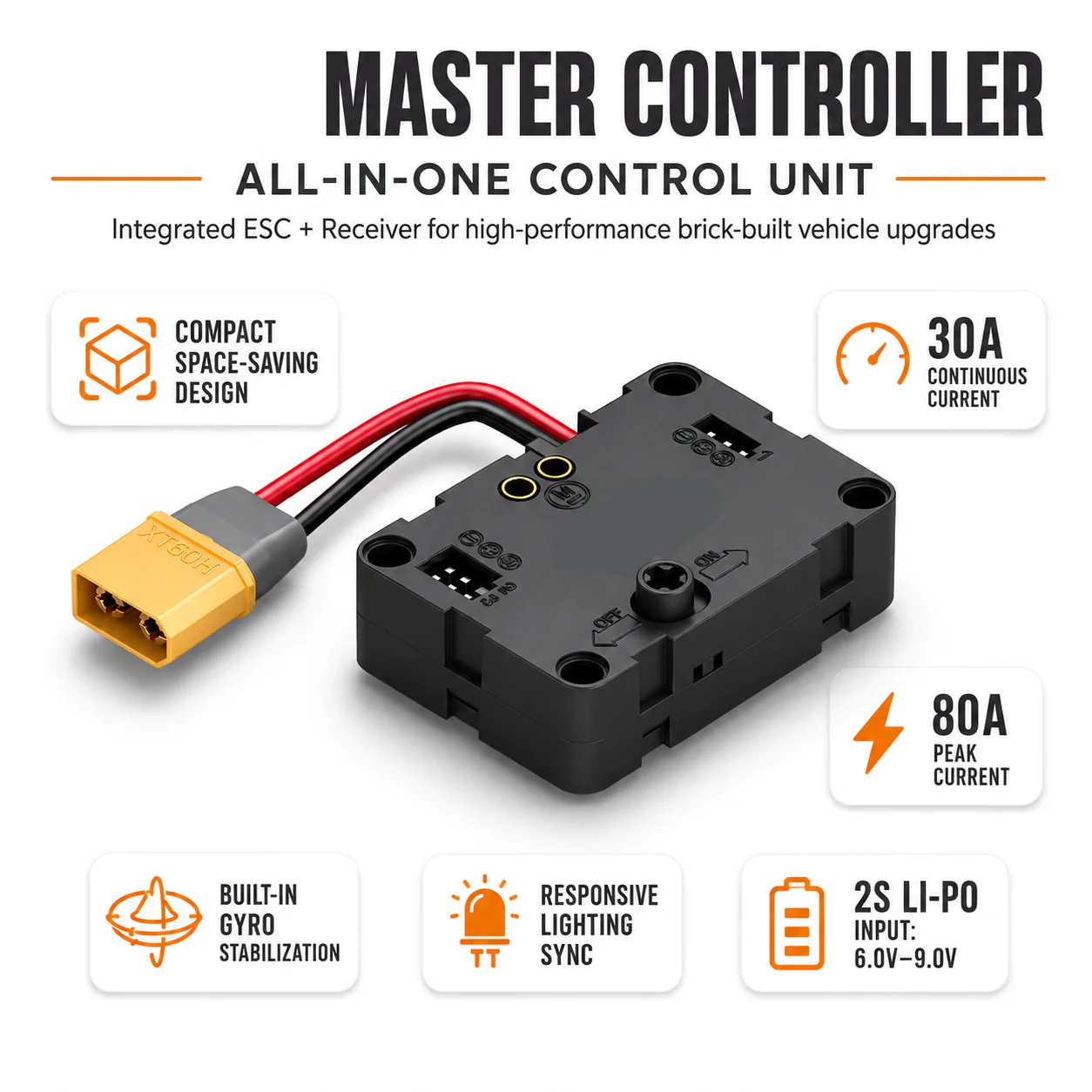

Function Summary:

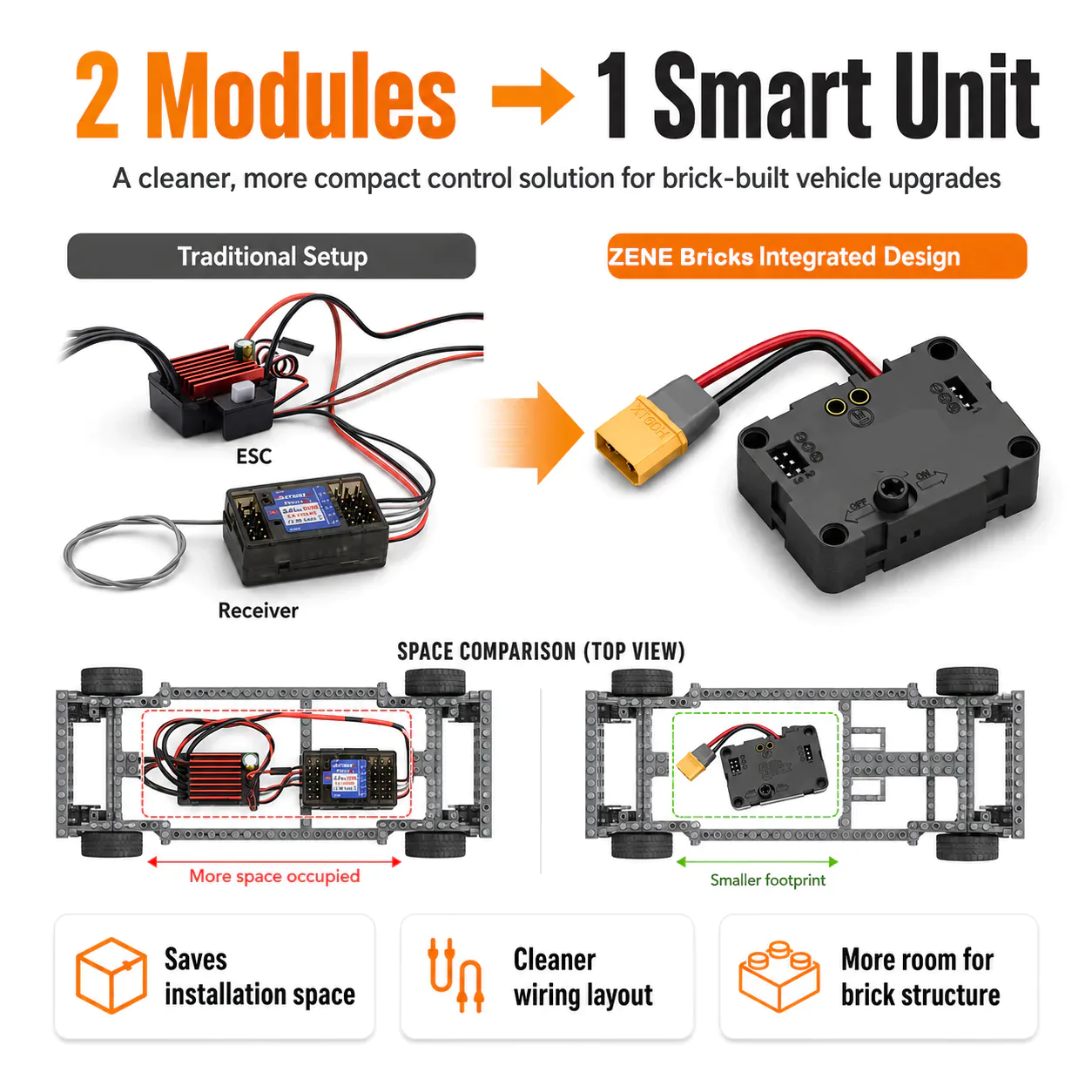

This all-in-one control unit integrates the ESC and receiver into one compact module. It is designed to provide powerful, stable, reliable, and clean system integration within limited brick-built vehicle space, helping builders install more functional equipment into compact LEGO-style vehicle frames.



Parameter	Information
Product Item Number	ZENE-RC-02
Product Name	All-in-One Control Unit
Operating Mode	Bidirectional with Brake
BEC Output	5V / 1.2A
Max Continuous Current	30A
Max Peak Current	80A
Input Voltage	6.0V–9.0V, 2S LiPo
Package Dimensions	68 × 40 × 88 mm
Power Connector	XT60 Power Connector
Motor Output	1 × High-Power Motor Output Port
Banana Sockets	3.5mm Spring-Loaded Safety Banana Sockets
Servo Output	2 × Servo Output Ports
Steering Servo Channel	Steering Servo Channel
Auxiliary Servo Channel	Auxiliary Servo Channel
Lighting Control Port	1 × Synchronized Lighting Control Port / Responsive Lighting Module Channel
Signal Control	PWM Signal Control
Gyro System	Built-in Gyro Stabilization System
Gyro Direction Switch	Normal / Reverse Switch
Power Switch	Built-in Power Switch
Structural Compatibility	Modular Design with High Building Block Compatibility
